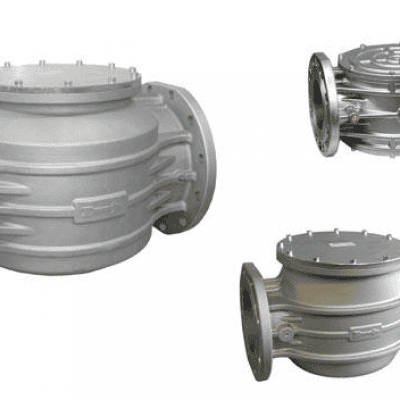

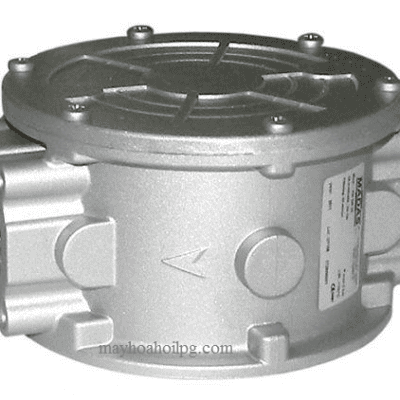

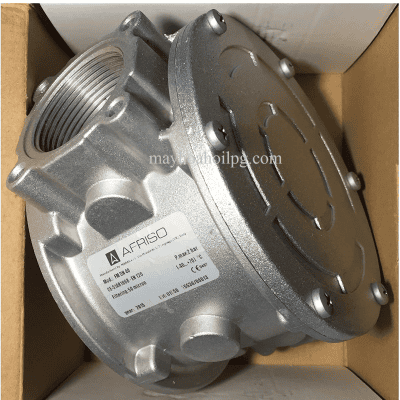

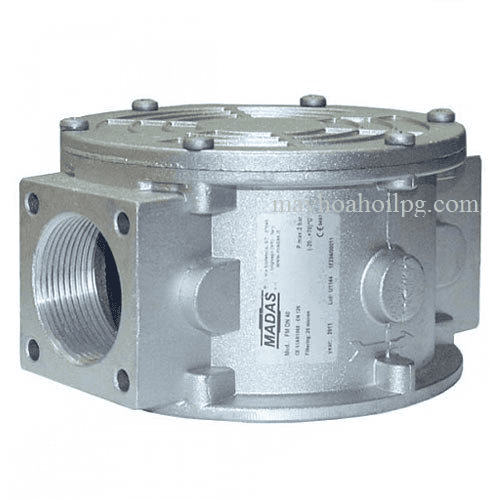

LỌC GAS MADAS FM

LỌC GAS MADAS FM - P.MAX 2 - 6 BAR CE-51AR1070
Model: FM DN65, FM DN80, FM DN100, FM DN125, FM DN150, FM DN200, FM DN250, FM DN300
Áp suất: 2-6bar
Lưới lọc: 10-20-50 micromet

TECHNICAL DATA
• Use : non-aggressive gases of the three families (dry gases)
• Ambient temperature (TS) : -40 ÷ +70°C
• Maximum operating pressure : 2 or 6 bar (see product label)
• Mechanical strength : Group 2 (according to EN 13611)
• Flanged connections that can be
coupled to PN 16 flanges : (DN 65 - DN 80 - DN 100 - DN 125 - DN 150 - DN 200 - DN 250 - DN 300)
ISO 7005 / EN 1092-1
• ANSI 150 flanged connections : on request
• Filter element* : Filtering 10-20-50 µm (see product label)
• In compliance with : (EU) Regulation 2016/426 (Appliances burning gaseous fuels)
PED Directive 2014/68/EU
* DN 125 - DN 150 - DN 200 - DN 250 - DN 300 only 10 µm
