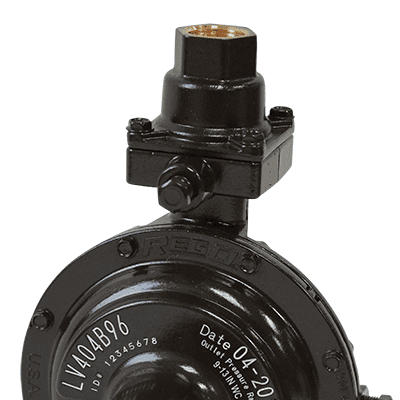

VAN ĐIỀU ÁP REGO LV404B4 VA LV404B9

Compact Twin Stage Regulators LV404B4 and LV404B9 Series

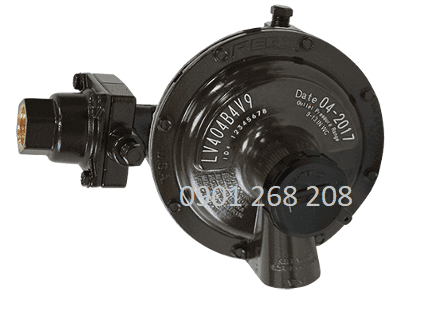

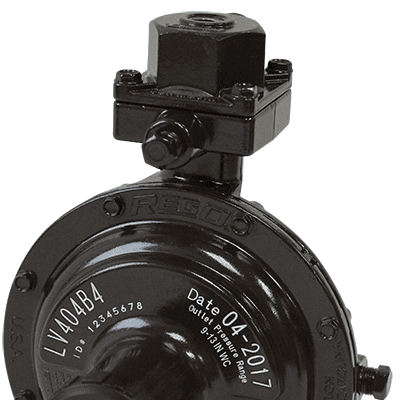

Model: LV404B4, LV404B4V9, LV404B46, LV404B46V9, LV404B9, LV404B9V9, LV404B96, LV404B96V9
Xuất xứ: Rego USA

Application This compact two-stage regulator is designed to reduce container pressure down to 11” w.c. delivery pressure. It is ideal for “on-site” cylinder applications, mobile homes and average domestic service including small ASME and 100 to 420 pound DOT cylinders.
Features • Incorporates integral relief valve. • With 15 PSIG inlet pressure, regulator is designed to not pass more than 2 PSIG with the seat disc removed. • Large vent helps prevent blockage and has ¾” F. NPT for vent piping. • Compact size allows for easy installation — especially under container hoods and within collars. • Vent on the first stage is consistently in the down position. • Built in pressure taps on both first and second stage regulators have plugged ⅛” F.NPT outlets. Plugs can be removed with a 3⁄16” hex allen wrench. • Select brown finish
