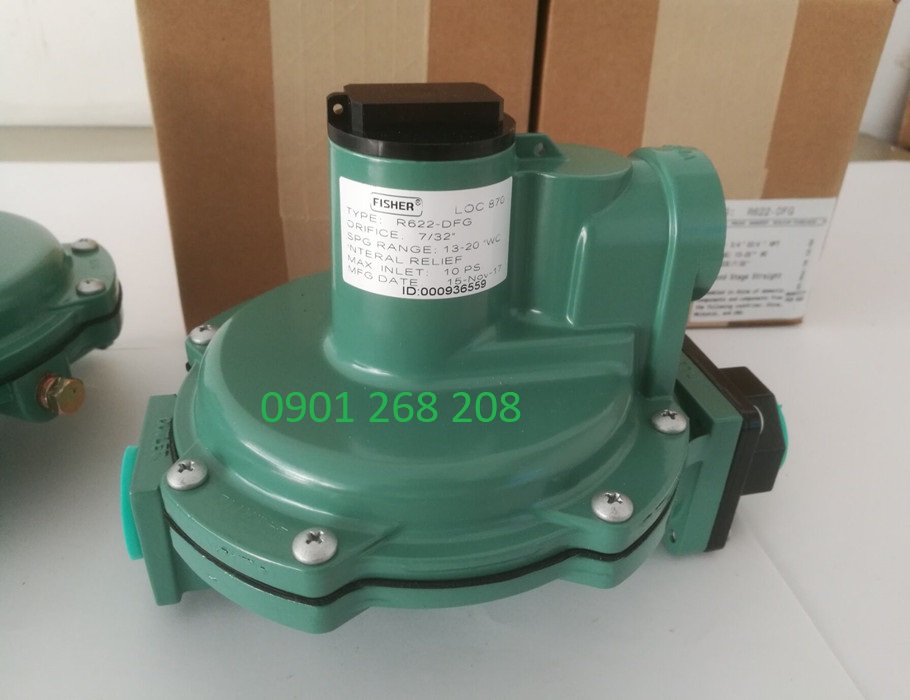

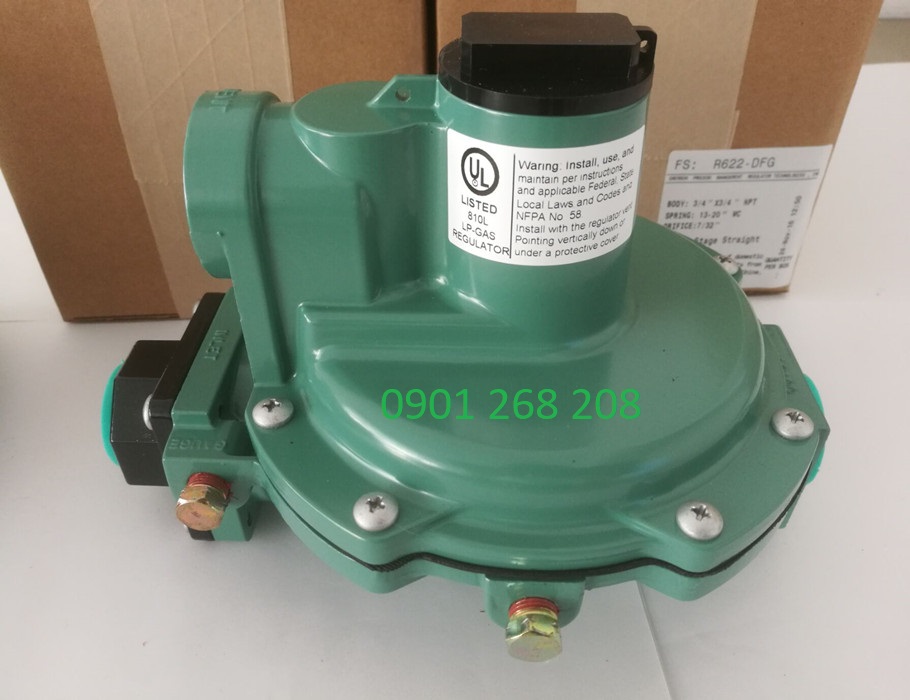

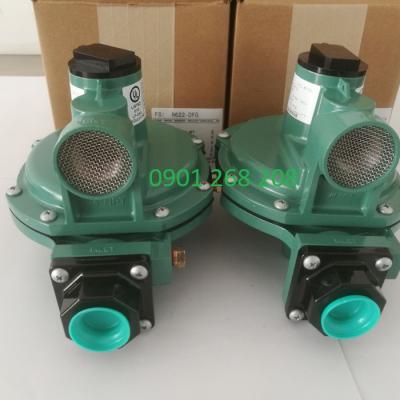

VAN ĐIỀU ÁP R622-DFG FISHER

Hãng sản xuất:

Fisher

Mã sản phẩm:

R622-DFG

VAN ĐIỀU ÁP R622-DFG FISHER
Type R622-DFG
Xuất xứ: Fisher

Công suất: 30m3/h
Áp suất đầu vào: 10 PSI
Áp suất đầu ra: 32-48mbar
Kết nối ren: 3/4" NPT

LH: 0901268208

VAN ĐIỀU ÁP R622-DFG FISHER
Type R622-DFG
Xuất xứ: Fisher

R622-DFG LPG Gas Regulator

Fisher R622 direct-operated, spring-loaded regulators provide economical pressure reducing control in a variety of residential, commercial, and industrial applications. These regulators can be used with natural, manufactured, or liquefied petroleum gases and have the same inlet and outlet pressure capabilities.

Body Sizes and End Connection Styles

3/4"*3/4", Thread(FNPT)

Inlet Pressure :10 psig
Maximum Outlet (Casing) Pressure
Operating to Avoid Internal Part Damage: 3 psid (0,21 bar d) above outlet
Outlet Pressure Ranges
8 to 2.2-inches w.c. (4 to 5 mbar)
5 to 7-inches w.c. (12 to17 mbar)
6.5 to 9-inches w.c. (16 to 22 mbar
9 to 13-inches w.c. (22 to 32 mbar)
13 to 20-inches w.c. (32 to 48 mbar)
16 to 35-inches w.c. (40 to 87 mbar)
1 to 2.2 psig (0,07 to 0,15 bar)
